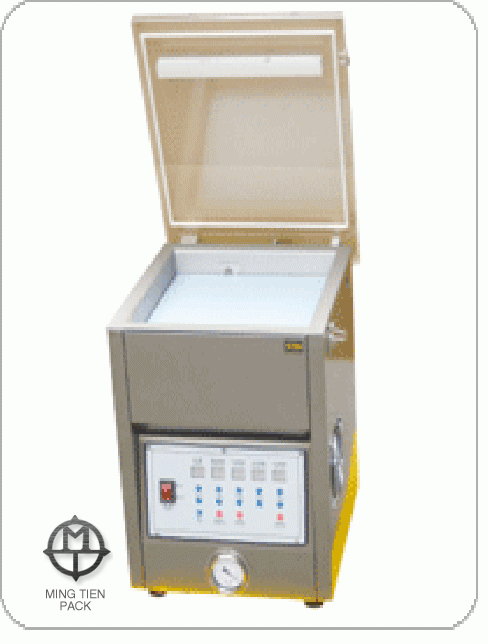

Stainless Steel Vacuum Packaging Machine

Stainless Steel Vacuum Packaging Machine

Voltage

1PH / 110V or 220V / 50Hz / 60Hz

Power

0.6kw

BUSCH Pump Capacity

0.24kw-6m3/hr / 0.37kw-7.2m3/hr(1/2 HP)

Machine Size (L x W x H)

21"x17"x21"
520 x 430 x 510 ( mm )

Vacuum Chamber
(L x W x H)

13.3"x12.9"x4.7"
340 x 330x 120 ( mm )

Seal Bar Length

12.2" / 310 ( mm )

Machine Material

Stainless Steel Chamber

Case Size( L x W x H )

22" x 18" x 26"
540 x 450 x 650 ( mm )(0.16CBM)

Net Weight

58Kgs

Gross Weight

72Kgs
  1. High value and high quality.
  2. High-Quality electric parts, long lasting, low failure rate.
  3. AII type machines passed the CE certification rigid.
  4. Built with high quality stainless steel.(#304)
  5. Using vacuum pump from Germany BUSCH.
  6. Easy maintain and user friendly.
  7. Programmable control panel (45 programs).
  8. Computerized water resistant control Panel.
  9. 6mm seal wire.

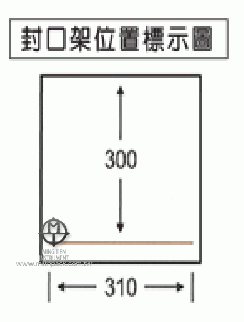

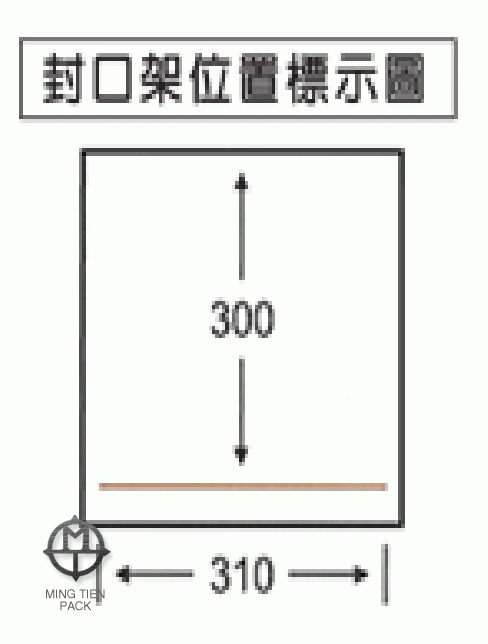

Diagrams of sealing beams position
The red lines show the correct position of the sealing beams
