Series of Heat Shrinkable Tunnel

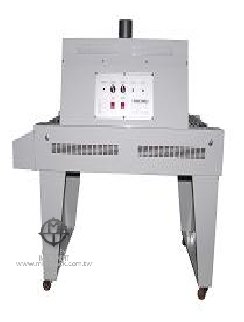

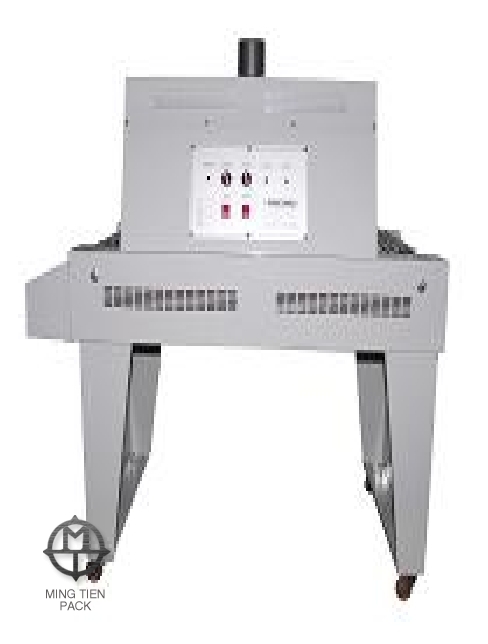

Infrared Ray Shrink Tunnel

Specification :
Machine Number : M-4020H
‧SpecificationsContents
‧ModelM-4020H /M-4020L
‧Power1Ø220V/240V/380V
‧Watts6kw
‧SHRINK TUNNEL DIMENSION400X200X700/ 400X200X1000
‧MACHIAMICAL DIMENSON1200X620X1110
‧CONVEYANCE SPEED4-12M/MIN
‧CONVEYANCE ROD PITCHONE FOD PER INCHES
‧Remarks F:(Fan) H:(Holder Stand) M:(Wire Mesh) S:(Silicon Bushing) D:(Double Fans) R:(Rubber Silicon Bushing)

Shrink Packing Machine equipped with an adjustable speed conveyor and 2 temperature controllers for upper and lower heaters.
The tunnel is heated 4 sides by 10 infrared tubes.
Tunnel comes with a stand and 4 wheels.
It can be used on a tabletop or free standing on the floor.
It's easy to operate and save the cost of labor.
Any products will be presented to the best perfect packing effects.
Enhance the appearance and value of your products, protecting your products against dirt, dust, moisture and handling
